GeoTrek Vans Convoy (AWD)

Starting at $128,275

Weekend Friendly Remote Work Family Friendly Off-Road

Match With This Van

About GeoTrek Vans Convoy (AWD)

ABOUT THE 2025 GEOTREK CONVOY AWD

The 2025 GeoTrek Convoy AWD is a premium Class B camper van designed for adventurers seeking off-grid capabilities without compromising comfort. Built on the Mercedes...

ABOUT THE 2025 GEOTREK CONVOY AWD

The 2025 GeoTrek Convoy AWD is a premium Class B camper van designed for adventurers seeking off-grid capabilities without compromising comfort. Built on the Mercedes-Benz Sprinter 144” AWD chassis, it features a 2.0L 4-cylinder turbo diesel engine and a 9-speed automatic transmission, ensuring a smooth and efficient drive from city streets to backroad campsites.

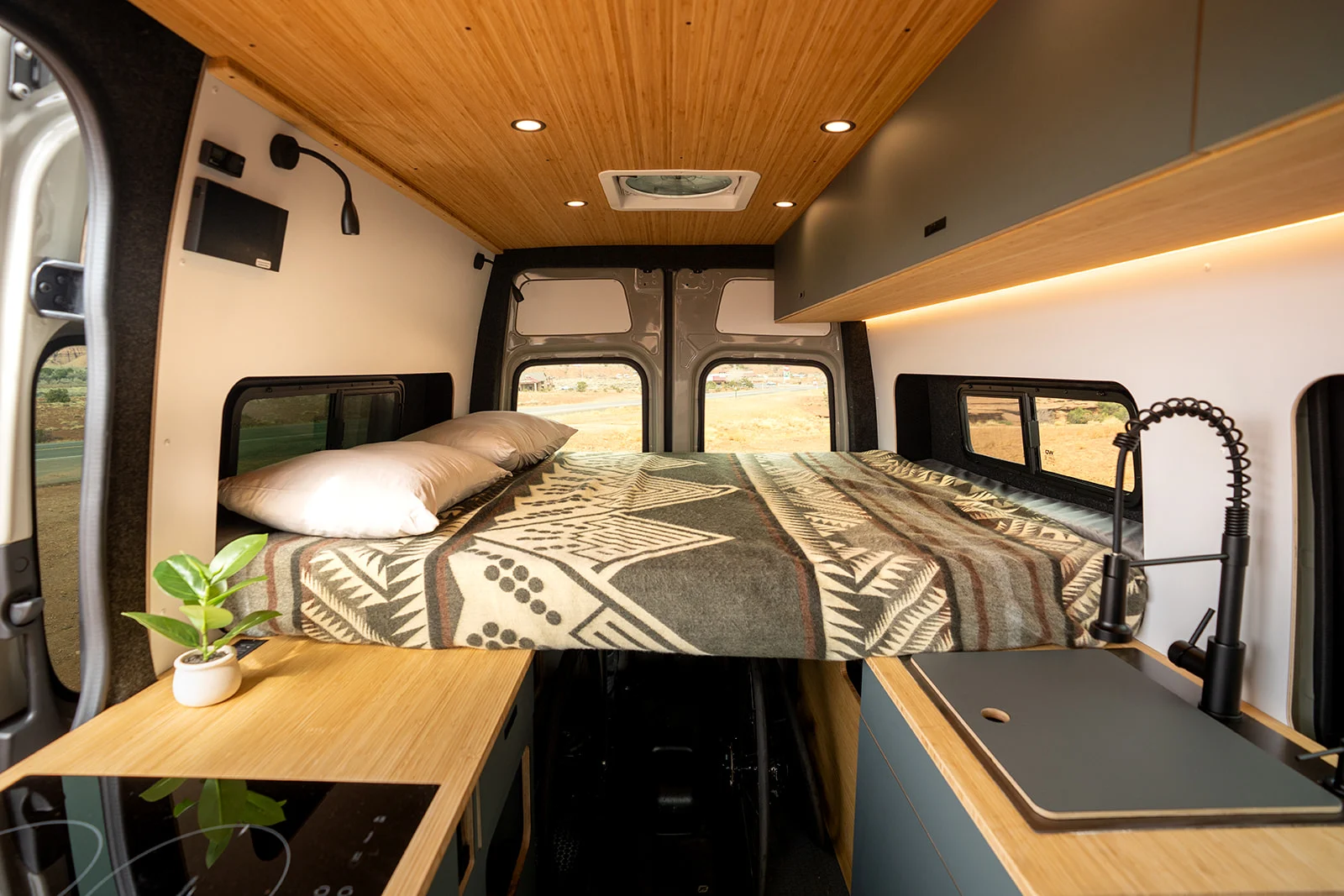

Inside, the Convoy offers flexible sleeping arrangements, including a removable bed platform with a 6-inch bifold mattress (68” x 68”), accommodating up to two people.

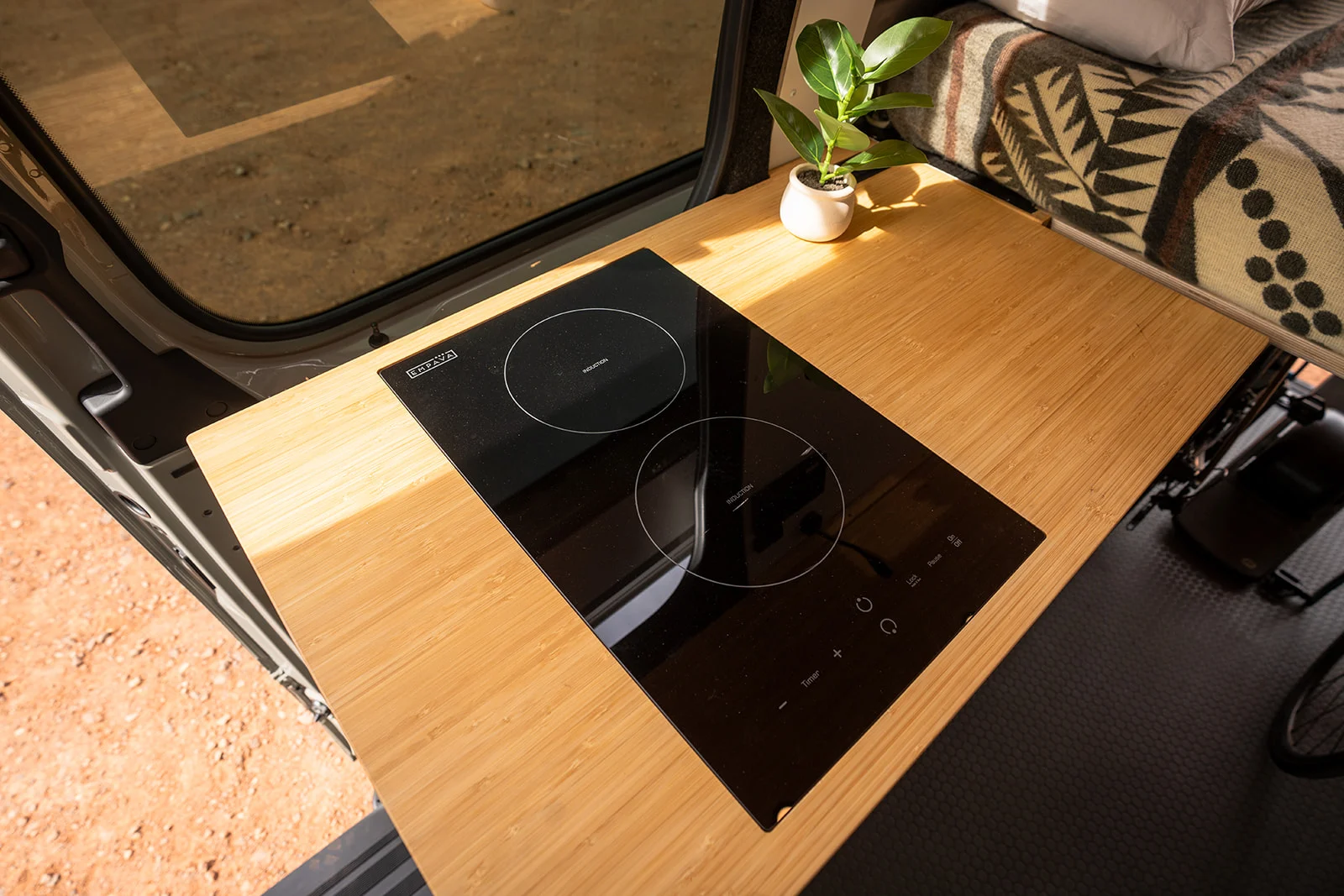

The well-equipped galley boasts bamboo countertops, stainless steel sink, electric powered faucet, Dometic fridge/freezer, and a two-burner induction cooktop, making meal prep on the road both easy and enjoyable.

For off-grid living, it’s equipped with an EcoFlow Powerkit 7kWh lithium battery system, 400W solar panels, 3500W inverter, and a 30 Amp shore power connection, giving you dependable power wherever you land. The water system includes a 25-gallon fresh water tank, gooseneck faucet, and a large sink (16” x 14”), while thoughtful touches like 3M Thinsulate insulation, MaxxAir ceiling fan, and Nomadic X2 12V rooftop AC elevate comfort.

Key features include:

Mercedes-Benz Sprinter 144” AWD chassis with 2.0L 4-cylinder turbo diesel engine and 9-speed automatic transmission
Removable bed platform with 6-inch bifold mattress (68” x 68”)
Bamboo countertops, stainless steel sink, electric powered faucet, Dometic fridge/freezer, and two-burner induction cooktop
EcoFlow Powerkit 7kWh lithium battery system with 400W solar panels, 3500W inverter, and 30 Amp shore power connection
25-gallon fresh water tank, gooseneck faucet, and large sink (16” x 14”)
3M Thinsulate insulation, MaxxAir ceiling fan, and Nomadic X2 12V rooftop AC
Bamboo ceiling and cabinets, laminate walls, upholstered pillars, and coin top flooring

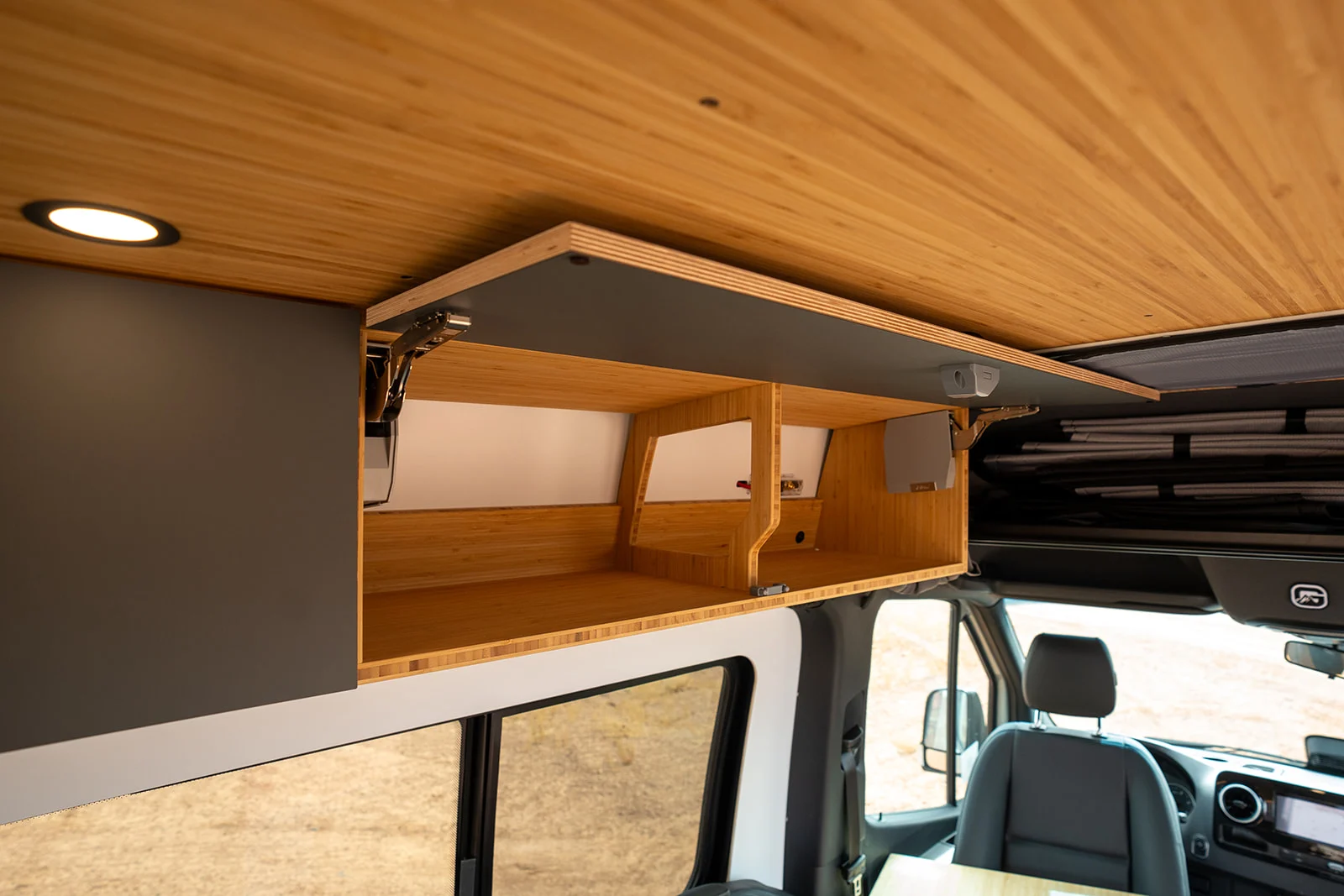

- Bench seat with interior storage and table group seating area, overhead cabinet with LED lights, and Geotrek headliner shelf
The 2025 GeoTrek Convoy AWD combines rugged capability with modern amenities, making it an excellent choice for those seeking off-grid adventures without sacrificing comfort.

Starting Price: $128,275

Seats: 4

Sleeps: 2

Toilet: Optional upgrade

Kitchen: Layout: Split galley with two slide-out drawers // Appliances: Dometic fridge/freezer // Two-burner induction stovetop // Electric-powered faucet with large deep sink (16″ x 14″) // Additional Features: Sliding drawer above fridge; cabinet door latches

📋 Van Features & Specifications

Core Features & Capacity

Seating Capacity: 4 seats
Sleeping Capacity: 2 people
Weekend Friendly
Work Optimized Layout
Full-time Living
Family Friendly

Interior Features

Toilet	No
Toilet Type	Optional upgrade
Shower Type	outdoor
Kitchen	Yes
Kitchen Type	Layout: Split galley with two slide-out drawers // Appliances: Dometic fridge/freezer // Two-burner induction stovetop // Electric-powered faucet with large deep sink (16″ x 14″) // Additional Features: Sliding drawer above fridge; cabinet door latches
Bed Size	68″ L x 68″ W
Bed Style	Removable platform bed (36” height) with 6” thick bifold mattress
Number of Beds	1
Storage Description	Garage Space: Open-concept garage space under bed platform // Storage Solutions: Garage cabinets/bed system; overhead cabinets; headliner shelf

Power Systems

Solar Capacity	400W
Battery Capacity	585 Ah
Inverter Size	3500W
Shore Power	Yes
Dual Alternator	Yes

Off-Road Capabilities

Off-Road Capable
4x4 Capability
All-Terrain Tires
Ground Clearance: Standard Mercedes-Benz Sprinter
Suspension Type: Standard Mercedes-Benz Sprinter suspension

Climate Control

Heater Type	Espar diesel heater
AC Type	Nomadic X2 AC unit (battery-powered, off-grid capable)
Insulation Rating	3M Thinsulate

Water System

Fresh Water Capacity	25 gallons
Gray Water Capacity	5 gallons
Hot Water Heater Type	Optional upgrade

Stealth Features

Window Type	Windows: Four windows with vented options
Exterior Appearance	Maintains a stock Mercedes-Benz Sprinter appearance with aBody Flares: Driver and passenger side flares (Flarespace)
